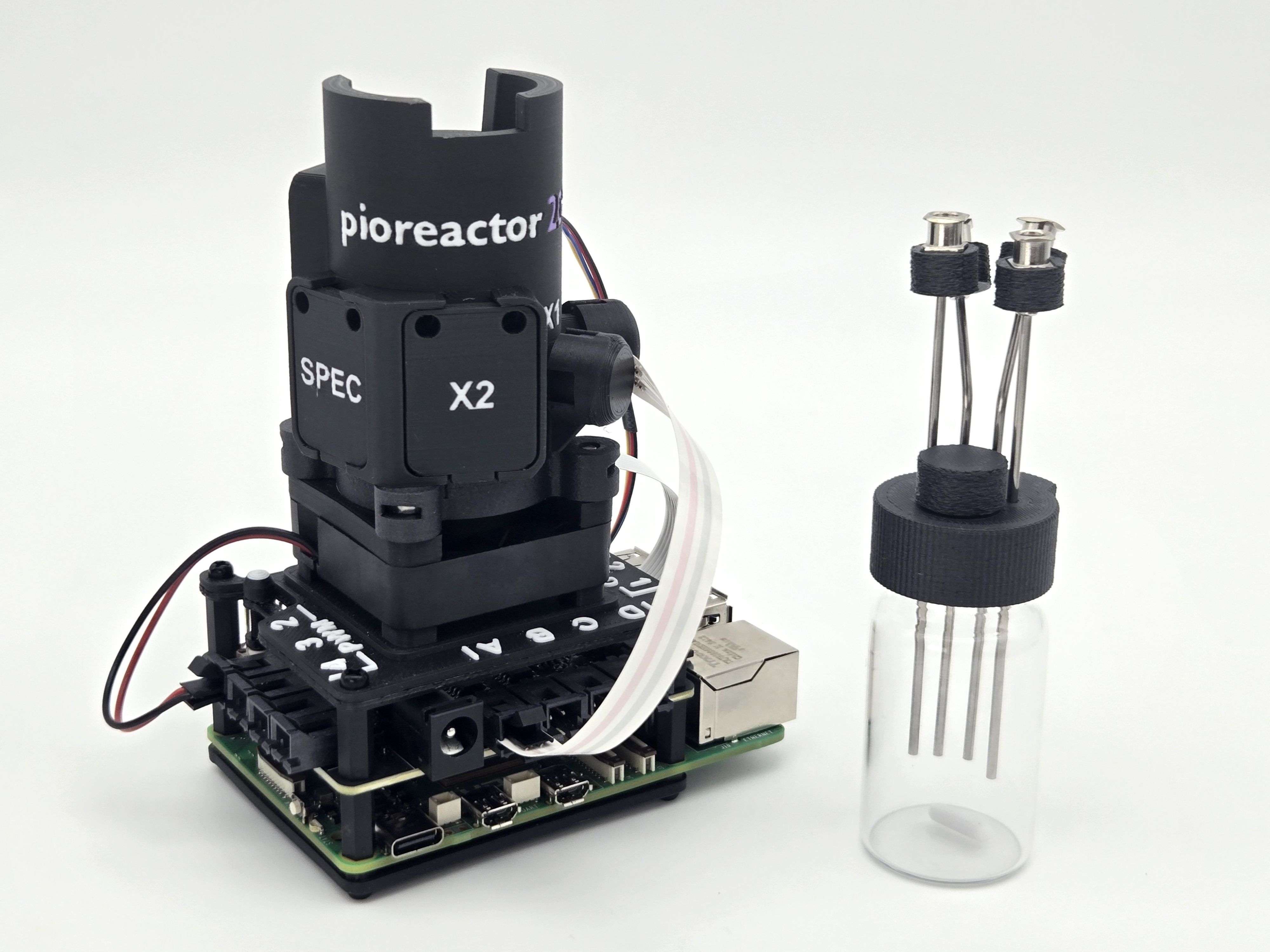

Connect the optics system
Step 1: Necessary parts #
- You will need:
- Eye-spy covers (3x)
- 8mm screws (12x)
- Eye-spies (2x)
tip
Each eye-spy is unique. The one used for REF has a white mark in the upper-left corner.
- 100mm Stemma-QT wire
- 50mm Stemma-QT wire
- LED cable
- LED caps (4x)
Step 2: Install the eye-spies #

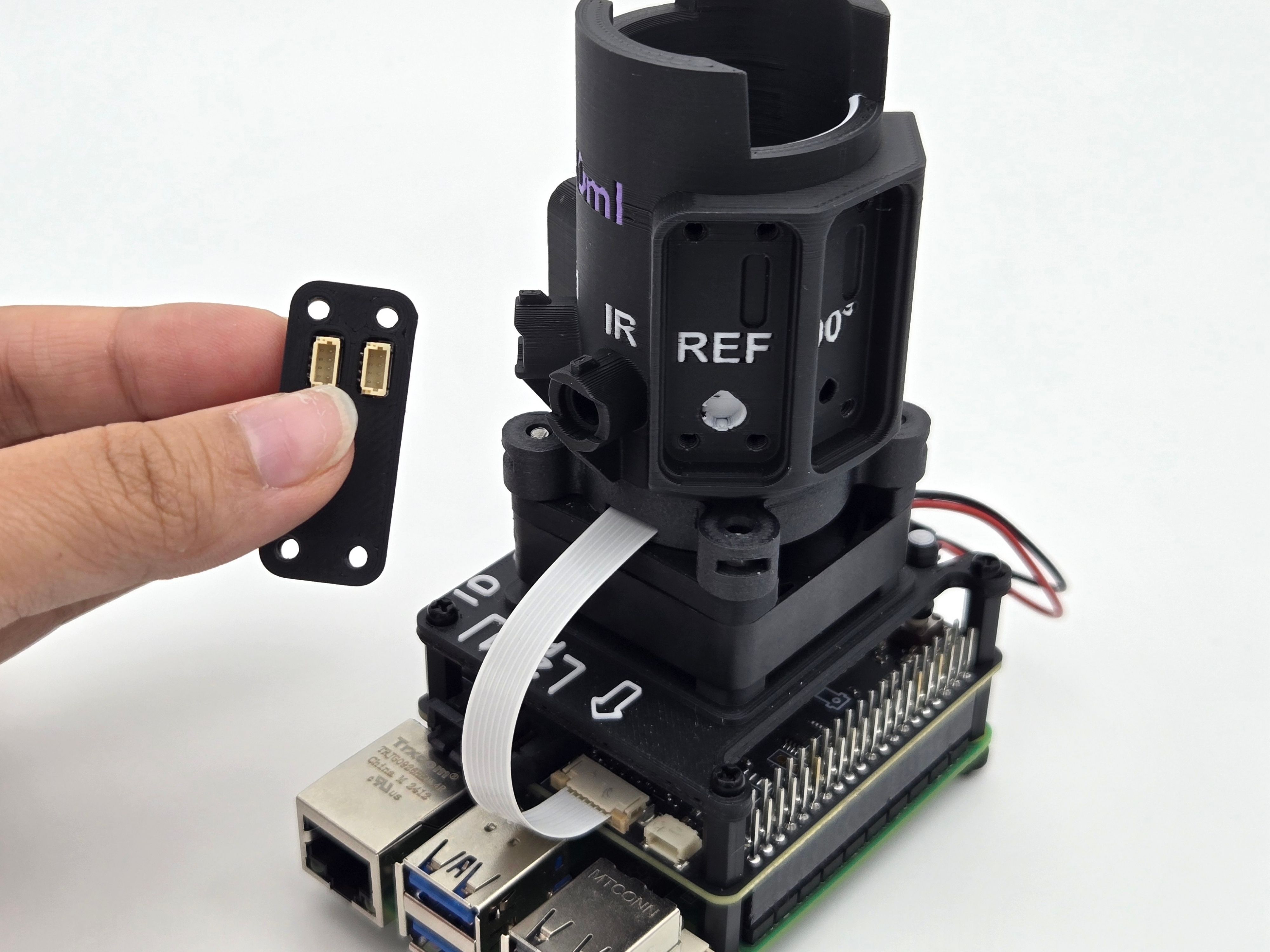

- Place an eye-spy cover over the REF eye-spy.

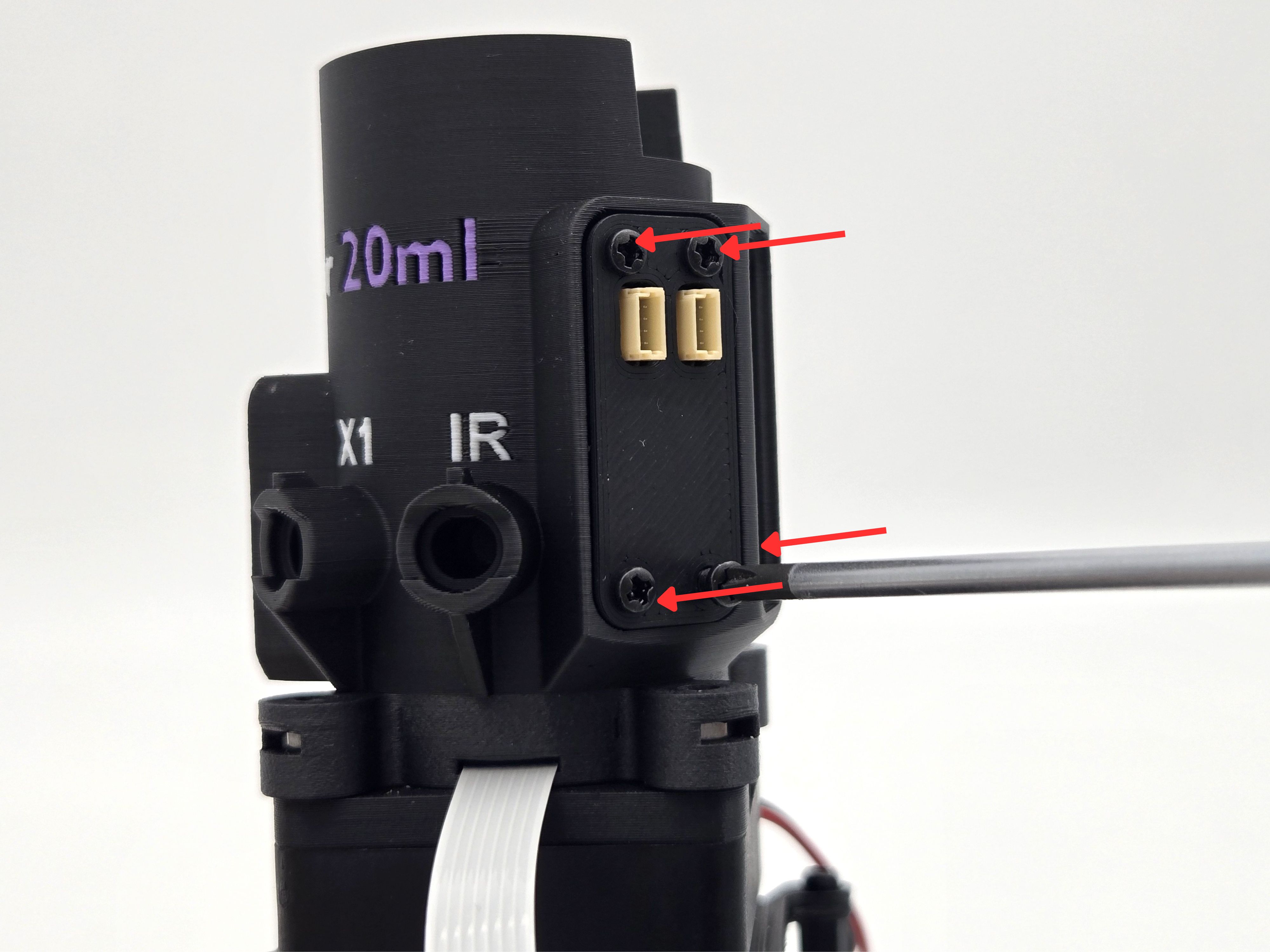

- With the tan connectors towards the top, place the eye-spy into the REF socket on the vial holder. Secure it with 4x 8mm screws.
- Place an eye-spy cover over the other eye-spy.
note
The measuring eye-spy can be placed in either the 90 or 135 degree pocket. For most applications, 90 degrees is the standard.
- Place the eye-spy into the desired pocket (90 or 135). Secure with 4x 8mm screws.
- Cover the remaining pocket with the last eye-spy cover. Secure with the remaining 8mm screws.
Step 3: Connect eye-spies to HAT #
- Locate the Stemma-QT connector on the HAT and connect the 100mm Stemma-QT wire, with the yellow wire furthest from the heater flat flex cable.

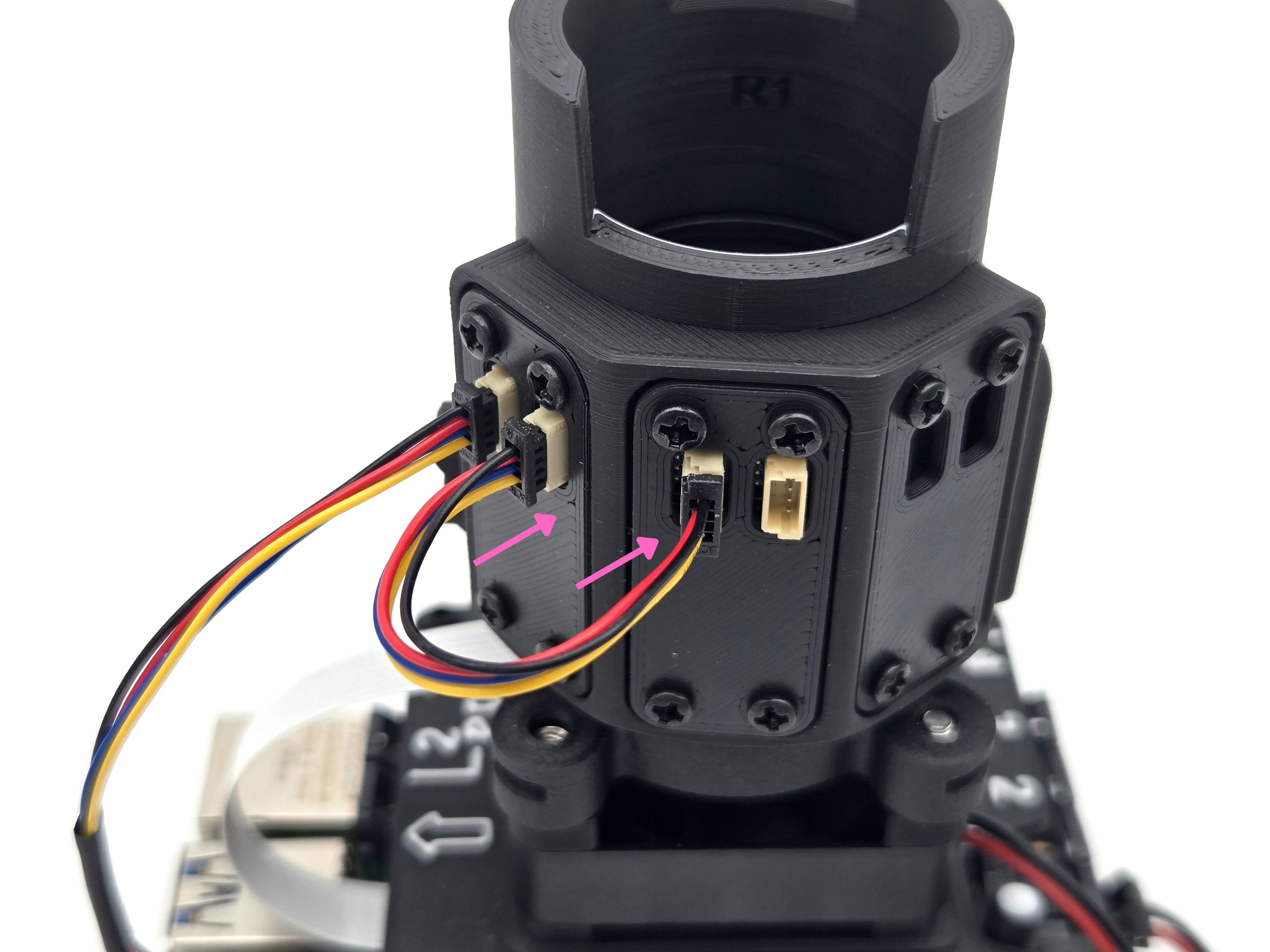

- Connect the other end to the leftmost eye-spy. Use the colors of the wire to orient the connector correctly.
- Use the 50mm Stemma-QT wire to connect each eye-spy.
tip
Extra eye-spies can be daisy chained using consecutive Stemma-QT cables!
tip
It does not matter which wires are connected to either eye-spy sockets. However, organize the wires neatly and avoid crossing over when possible.
Step 4: Connect LED cable (Channel A → IR pocket) #
- Connect the LED cable to the Channel A connector.

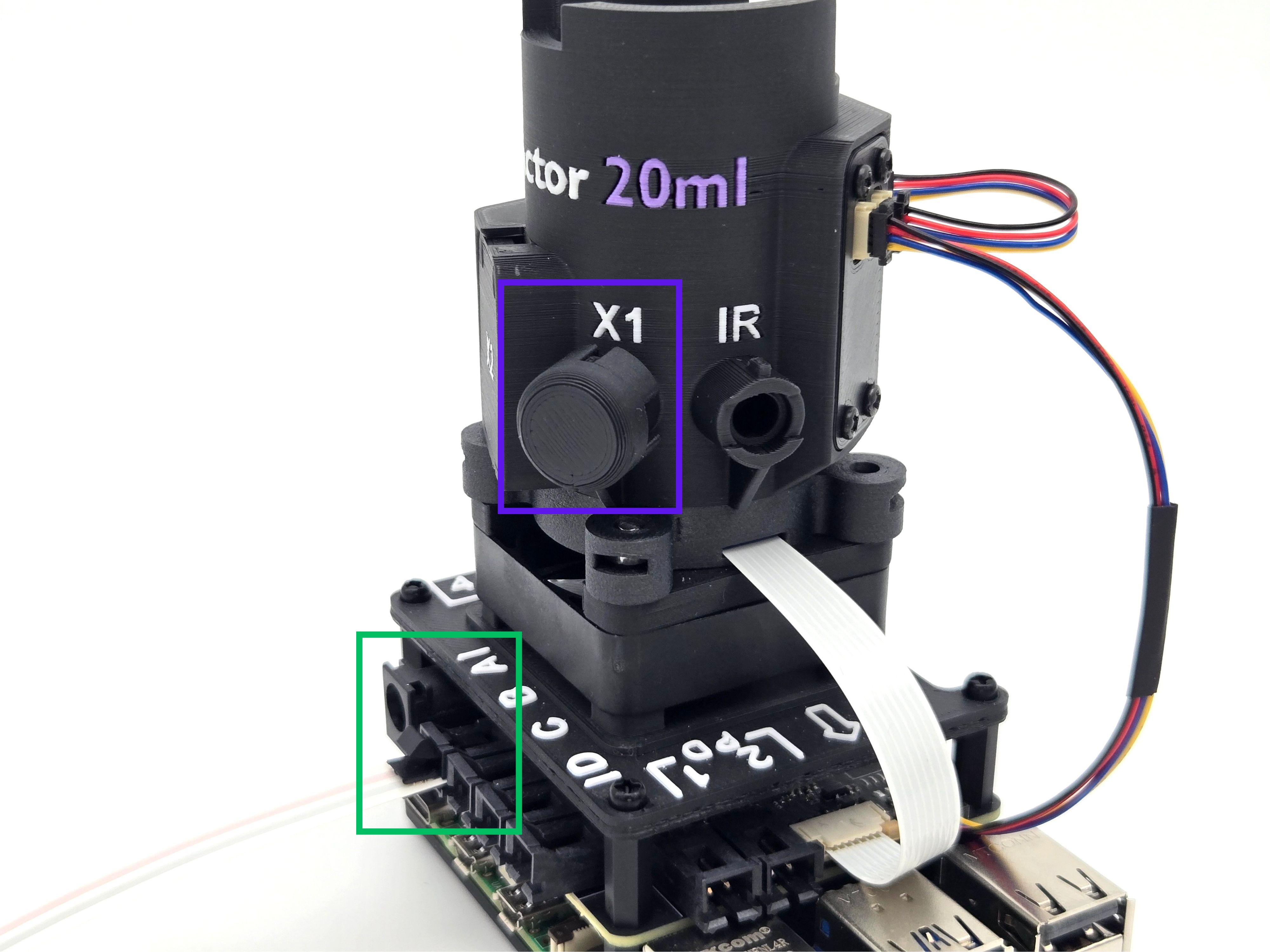

- Secure anLED cap over the unused pocket.

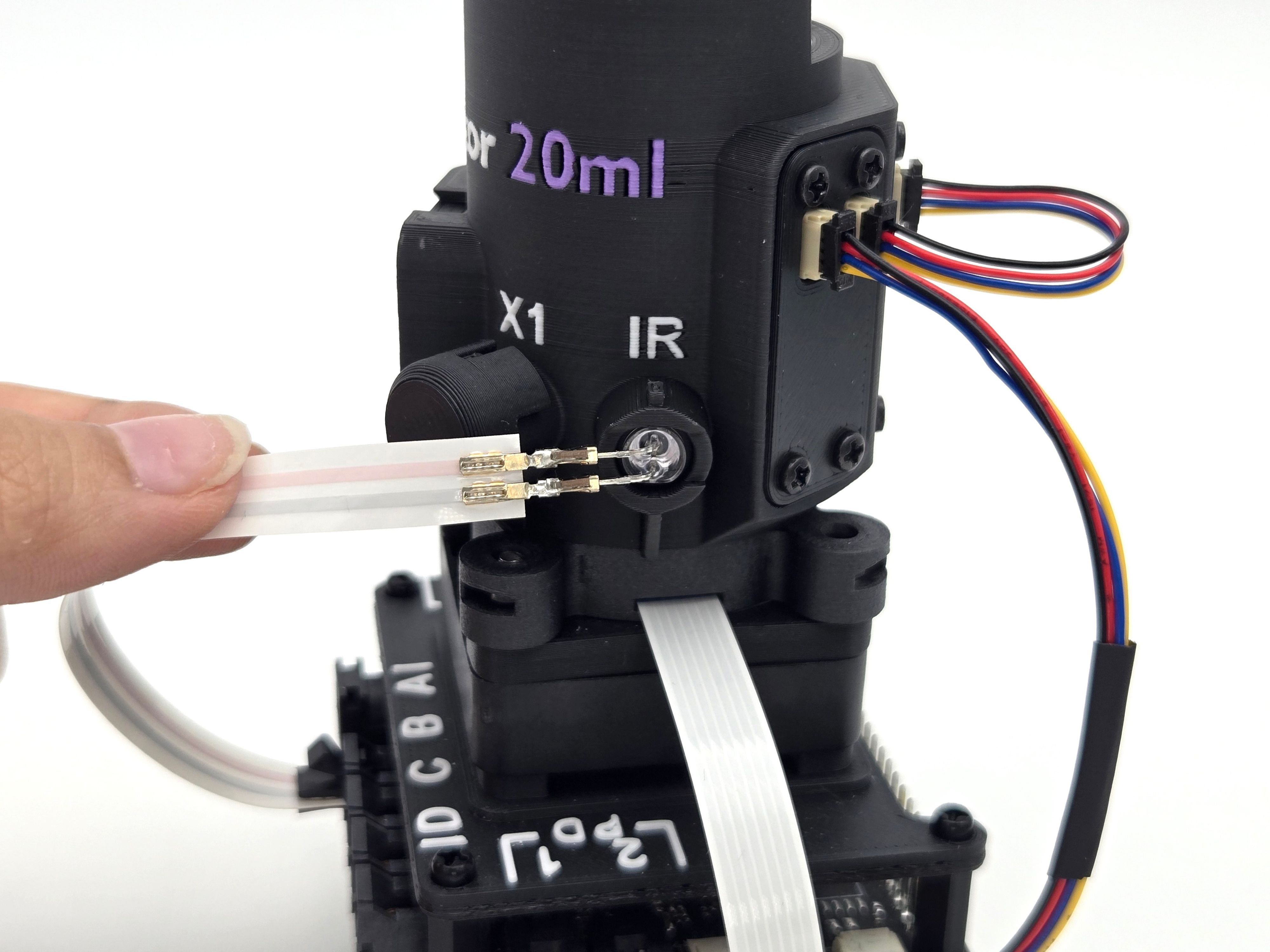

- Insert the LED bulb into the pocket labeled IR. Slowly bend the bulb's leads 90 degrees towards the left.
- Secure the bulb with an LED cap.
